22 IDEX v3 by Vision Miner

SKU: 22IDEXV3

Regular price
$14,900.00
Sale price
$14,900.00
Regular price
$0.00

Benefits of 22 IDEX v3 by Vision Miner

  • 22 IDEX v3 unlocks another level of automation, ease-of-use, and affordability for high-temp additive manufacturing.
  • Capable to print PLA to PEEK, PEKK, ULTEM™ , PPSU, and more.
  • Dual independent extruders capable of 500ºC.
  • Triple-motor, true-self-leveling 200ºC bed.
  • Actively-heated chamber reaching 100ºC
  • Build Volume: 13.7" x 13.7" x 17.7"

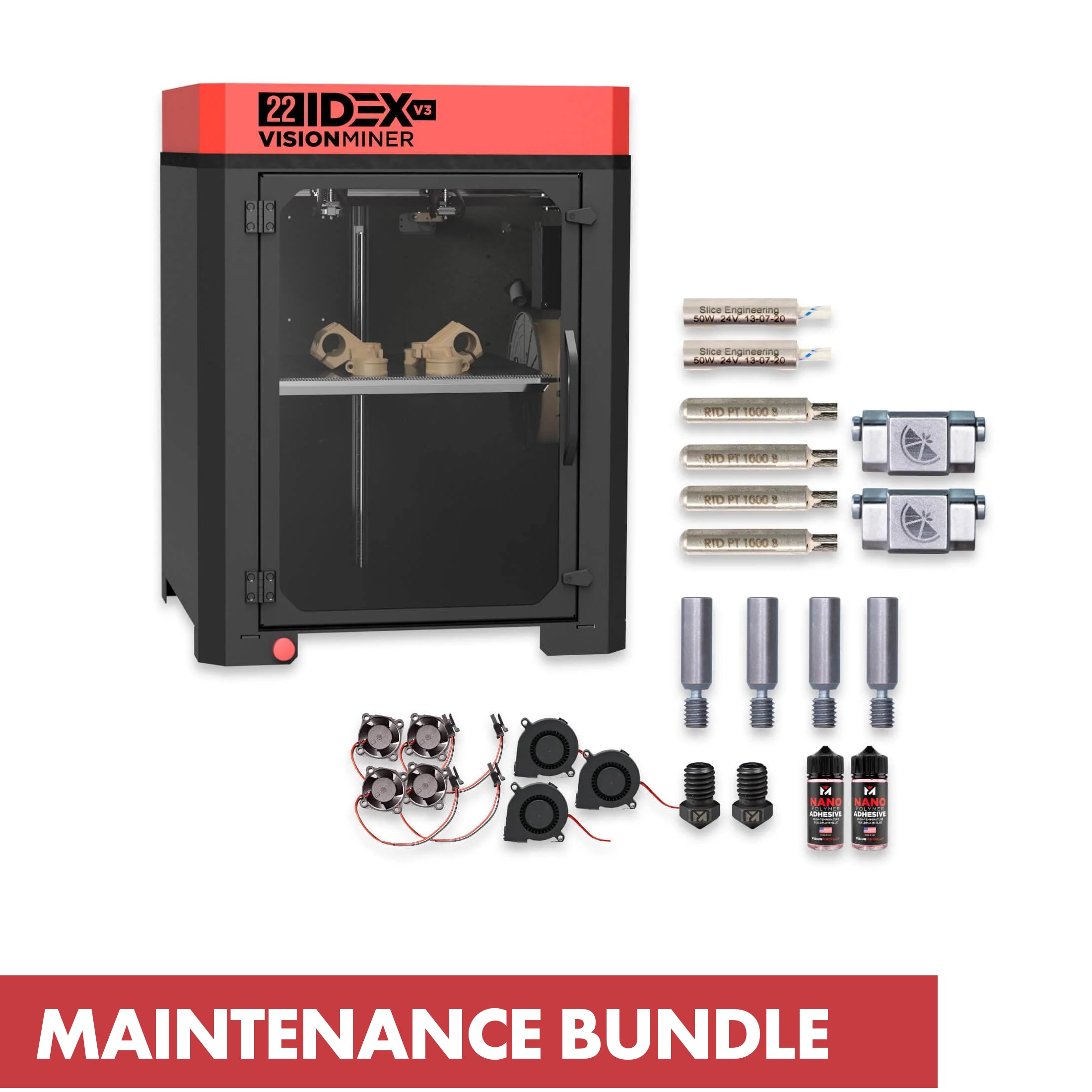

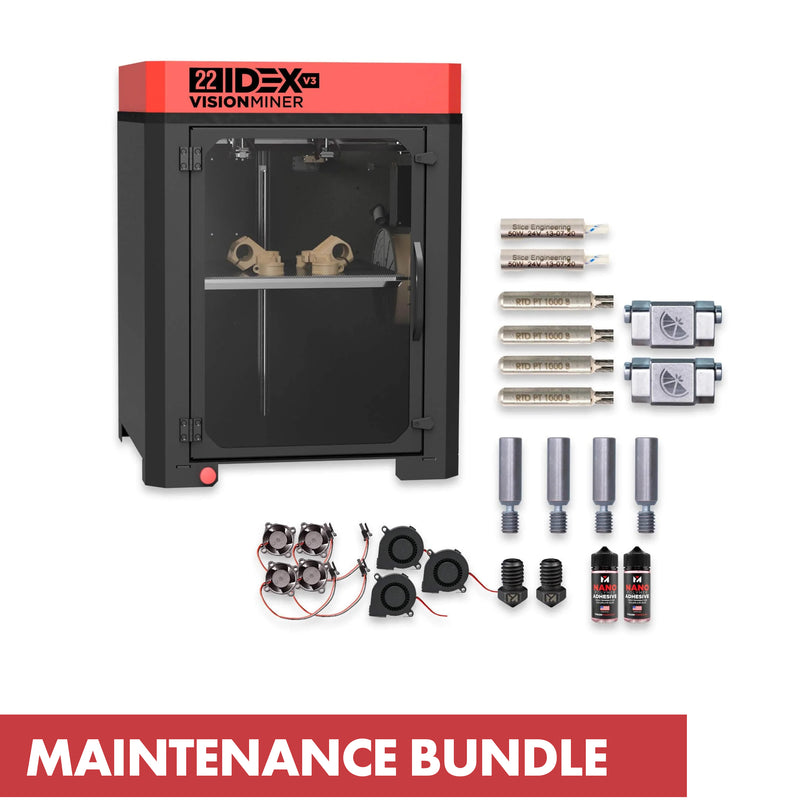

22 IDEX v3 CONFIGURATION:

1 x 22 IDEX V3
4 x Heat Break
2 x .4mm Hardened Steel Nozzle
2 x Hot Block
4 x Heatsink Fan
2 x Part Cooling Blower Fan
1 x Chamber Circulation Fan
2 x Industrial Heater (50W 24V)
4 x PT1000 Thermocouple
1 x Build Plate Thermistor
2 x Nano Polymer Adhesive
1 x Z-Probe Wire

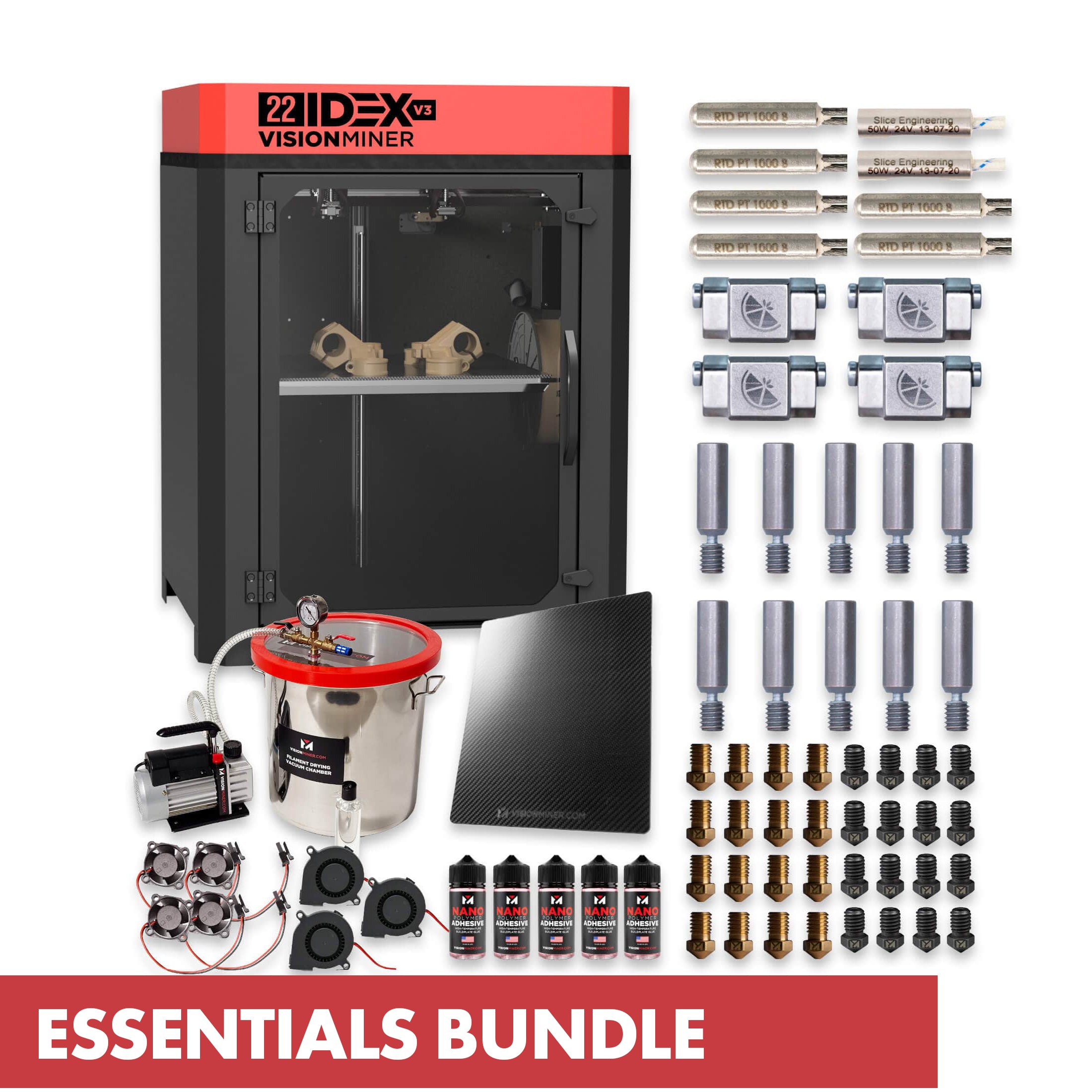

1 x 22 IDEX V3
1 x Carbon Fiber Build Plate
1 x Vacuum Chamber + Pump
1 x Complete Nozzle Pack (32x Various Size Brass/Hardened Steel Nozzles)
10 x Heat Break
4 x Hot Block
4 x Heatsink Fan
2 x Part Cooling Blower Fan
1 x Chamber Circulation Fan
2 x Industrial Heater (50W 24V)
6 x PT1000 Thermocouple
1 x Build Plate Thermistor
5 x Nano Polymer Adhesive
1 x Z-Probe Wire

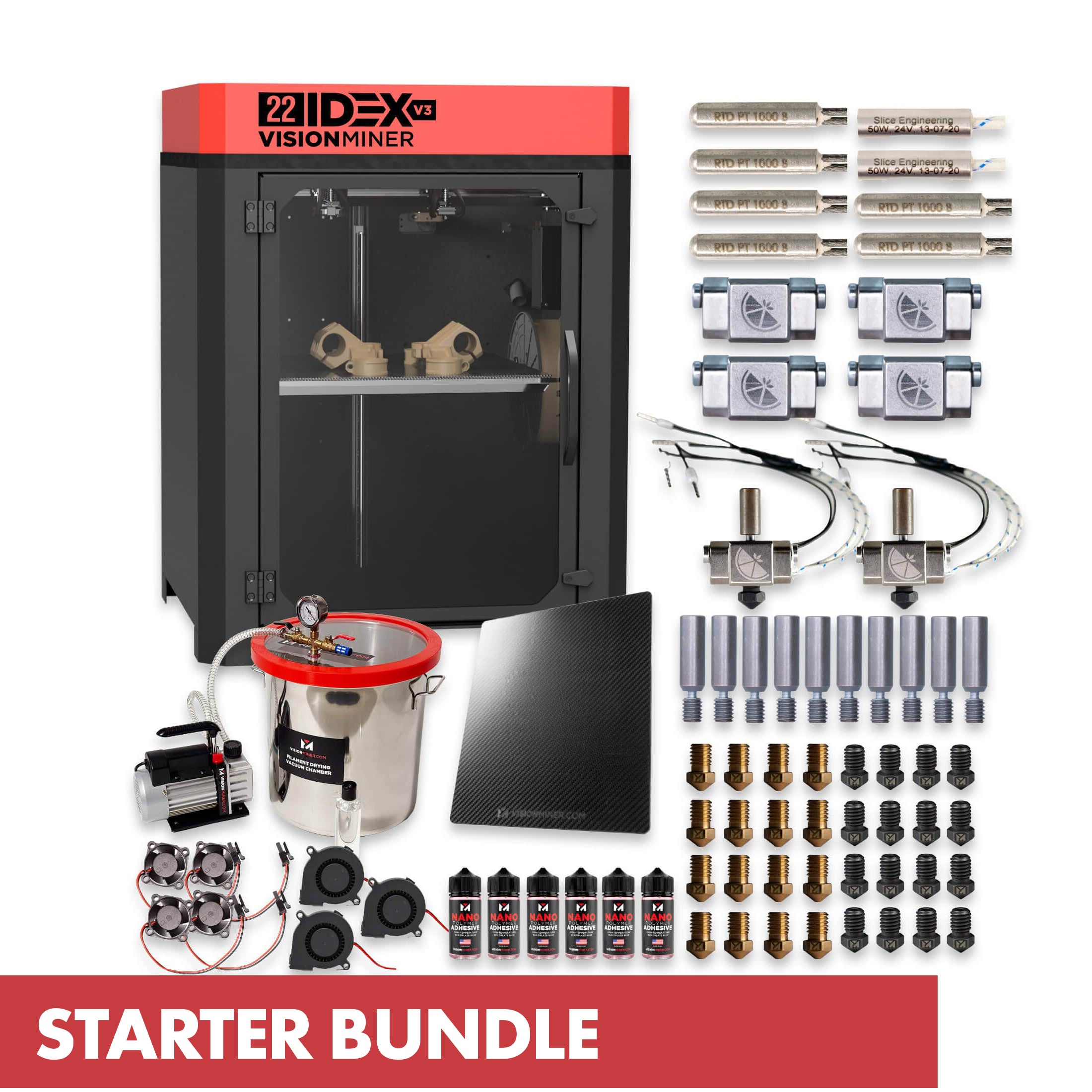

1 x 22 IDEX V3
2 x Spare Copperhead Hotends (Full Assembly)
10 x Copperhead Heat Break
1 x Carbon Fiber Build Plate
1 x (3 Months) Tier 1 Support
1 x Filament Drying Kit (Chamber+Pump only)
1 x Nozzle Pack - COMPLETE PACK (32 nozzles, various sizes, Brass &
Hardened Steel)
4 x Hot Block
4 x Heatsink Fan
2 x Part Cooling Blower Fan
1 x Chamber Circulation Fan
2 x Industrial Heater (50W 24V)
6 x PT1000 Thermocouple
1 x Build Plate Thermistor
1 x Z-Probe Wire
6 x Nano Polymer Adhesive

22 IDEX v3

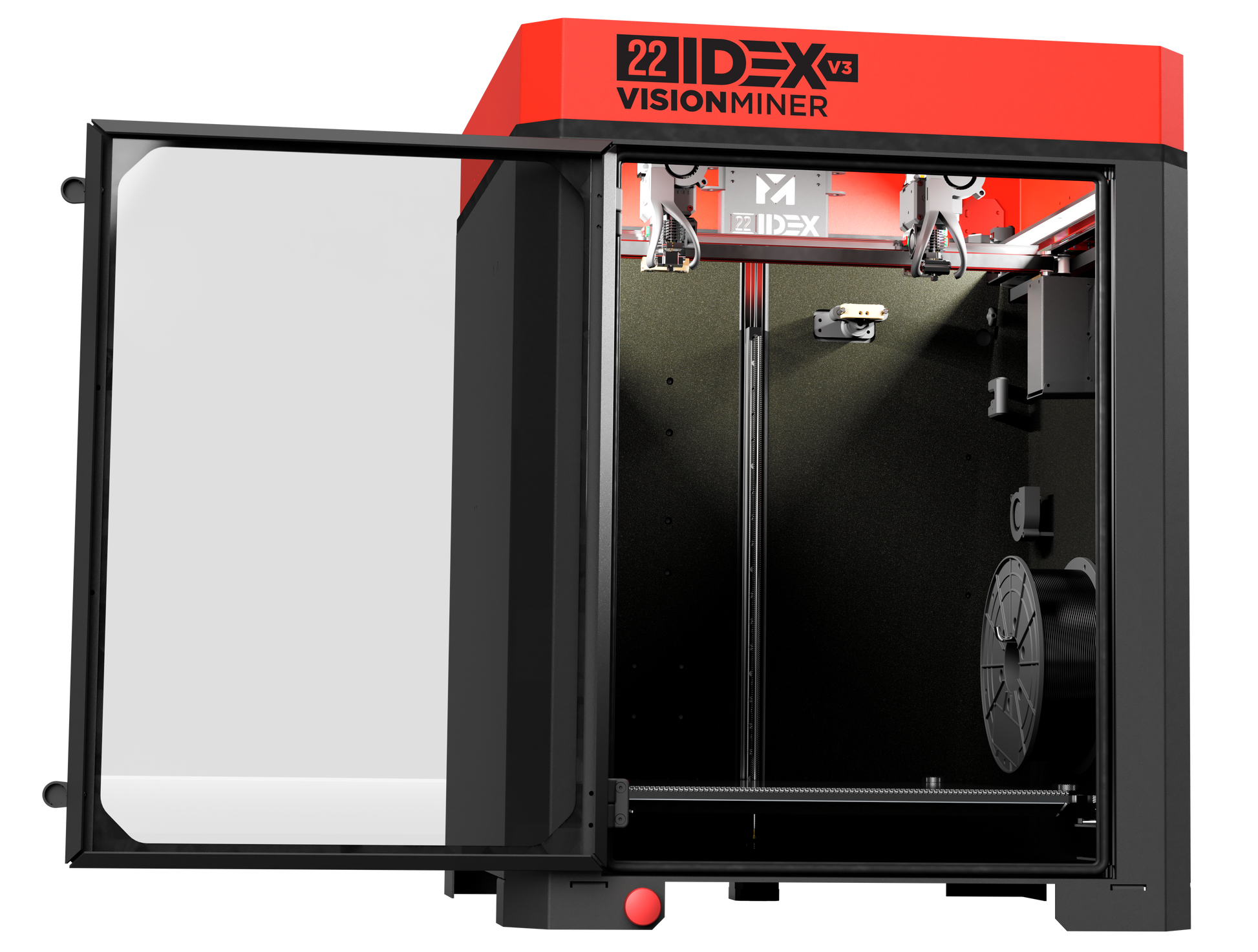

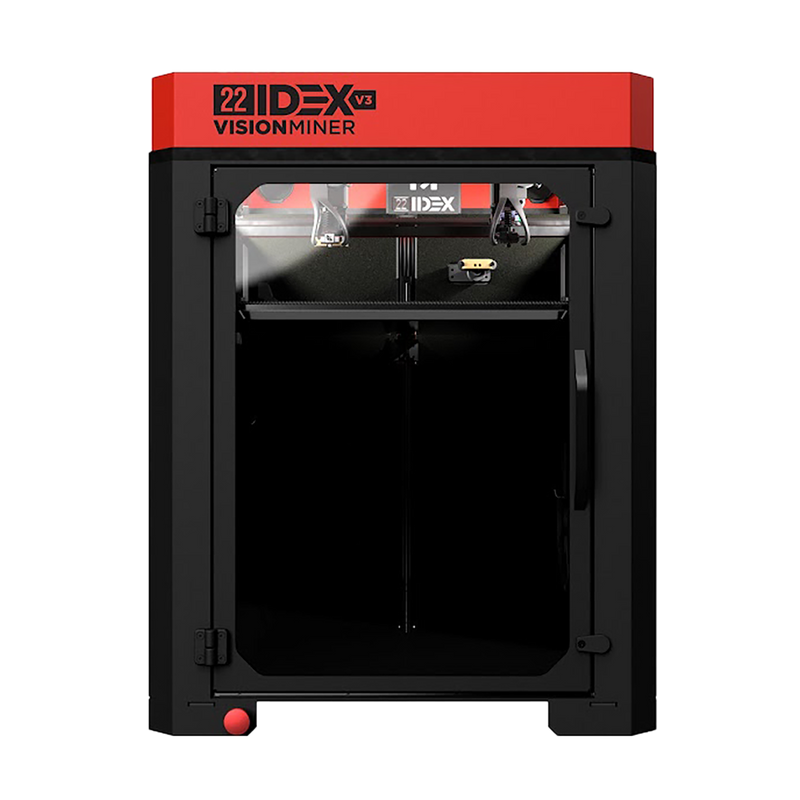

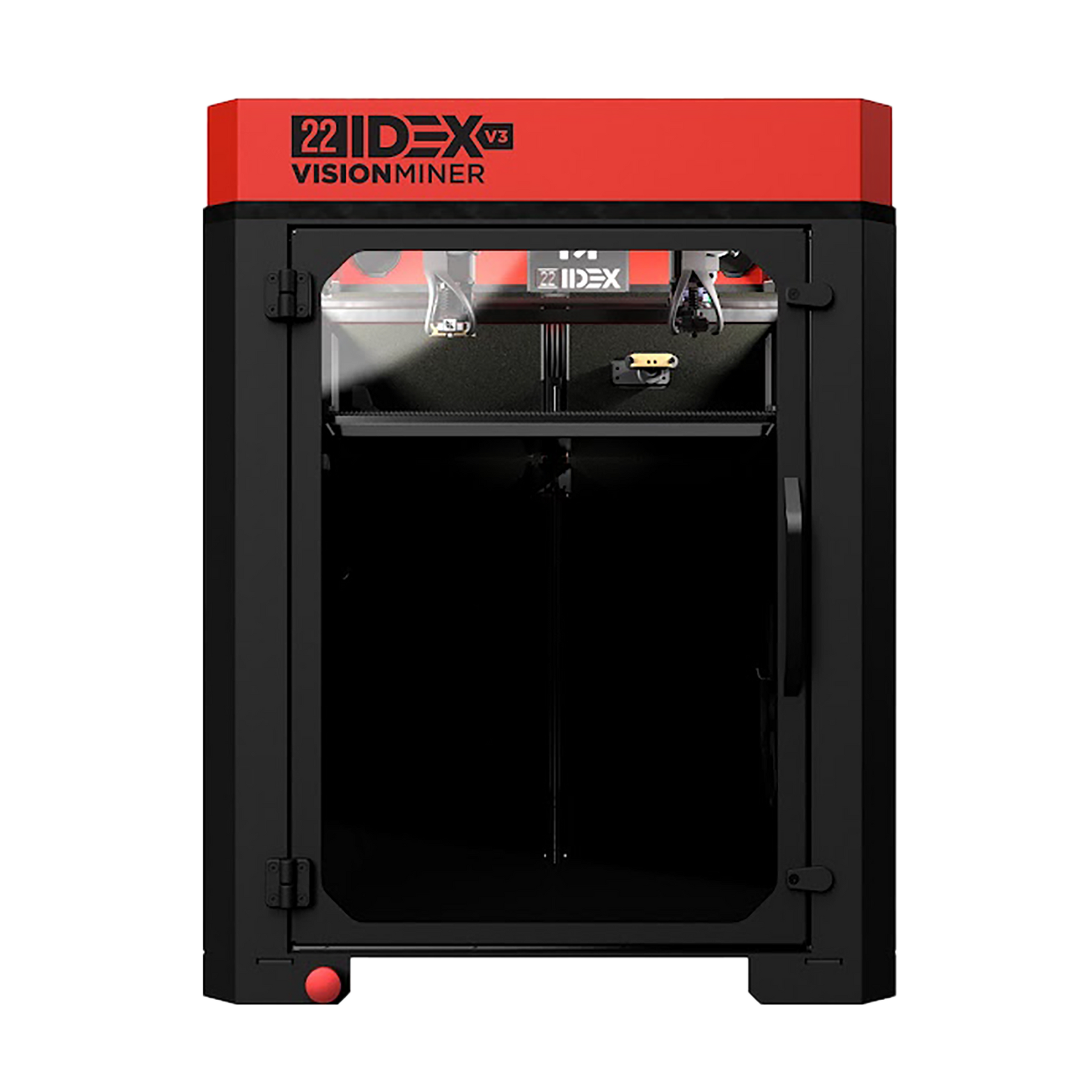

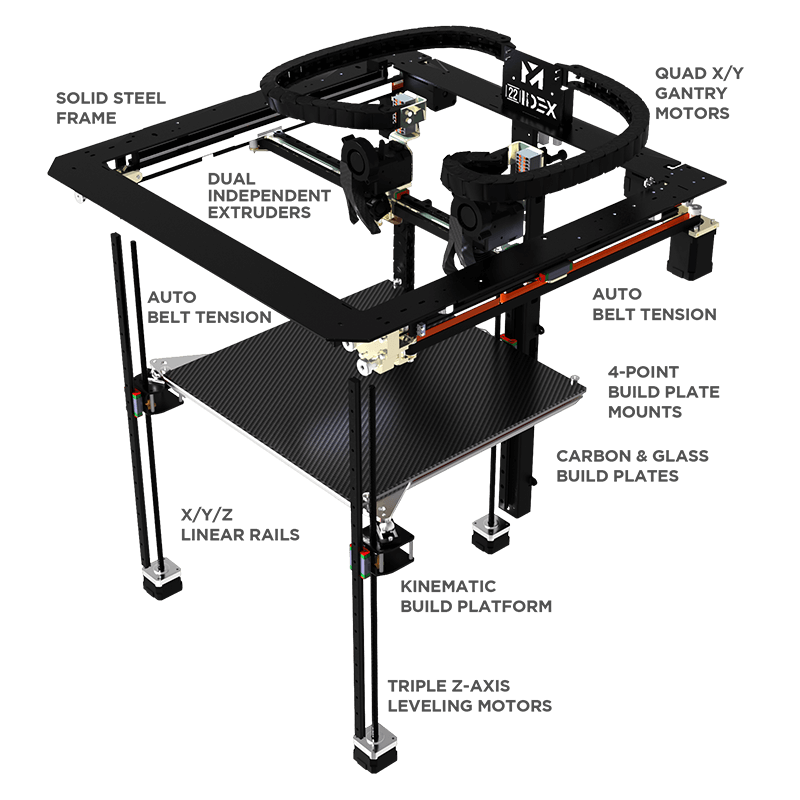

3DXTECH is now an official supplier of the 22 IDEX printer from Vision Miner. With dual independent extruders capable of 500ºC, an actively-heated chamber reaching 100ºC, and a triple-motor, true-self-leveling 200ºC bed, coupled with the fully open material system, the 22 IDEX v3 unlocks another level of automation, ease-of-use, and affordability for high-temp additive manufacturing.

500ºC Nozzles

Independent Dual-Extruder Hotends Maximum temperatures give you the ability to print any Performance Thermoplastic on the market, from PLA to PEEK, PEKK, ULTEM™ , PPSU, and more. Unlike other machines, BOTH hotends reach the full 500ºC, enabling multi-material, duplication mode, mirror mode, and full use of supports - soluble and otherwise.

200ºC Build Platform

True Self-Leveling Build Platform Never manually level your bed again. Triple Z-Axis motors enable true self-leveling of the build platform, combined with 128-point+ mesh leveling (technically unlimited points), so the hotends will compensate for any variation in the build surface. On top of that (literally), the QUAD-motor XY gantry squares itself -- your parts will maintain accuracy over time, without having to constantly recalibrate.

100ºC+ Chamber

Actively Heated Chamber Performance thermoplastics are next to impossible without a heated build environment - the 22 IDEX heats up to 100ºC+, enabling functional high-temp materials with solid mechanical properties. Dual chamber thermistors monitor the temperature, with auxiliary convection fans ensuring an evenly-heated build volume.
