Can You Use 3DXTECH Filament in the Bambu AMS and Other Material Management Systems?
Yes, you can. Our 750g reels fit within the size requirements of popular automated material management systems like the Bambu AMS, Creality CFS, and Anycubic ACE Pro. That means you can run 3DXTECH’s engineering-grade filaments in your favorite system.

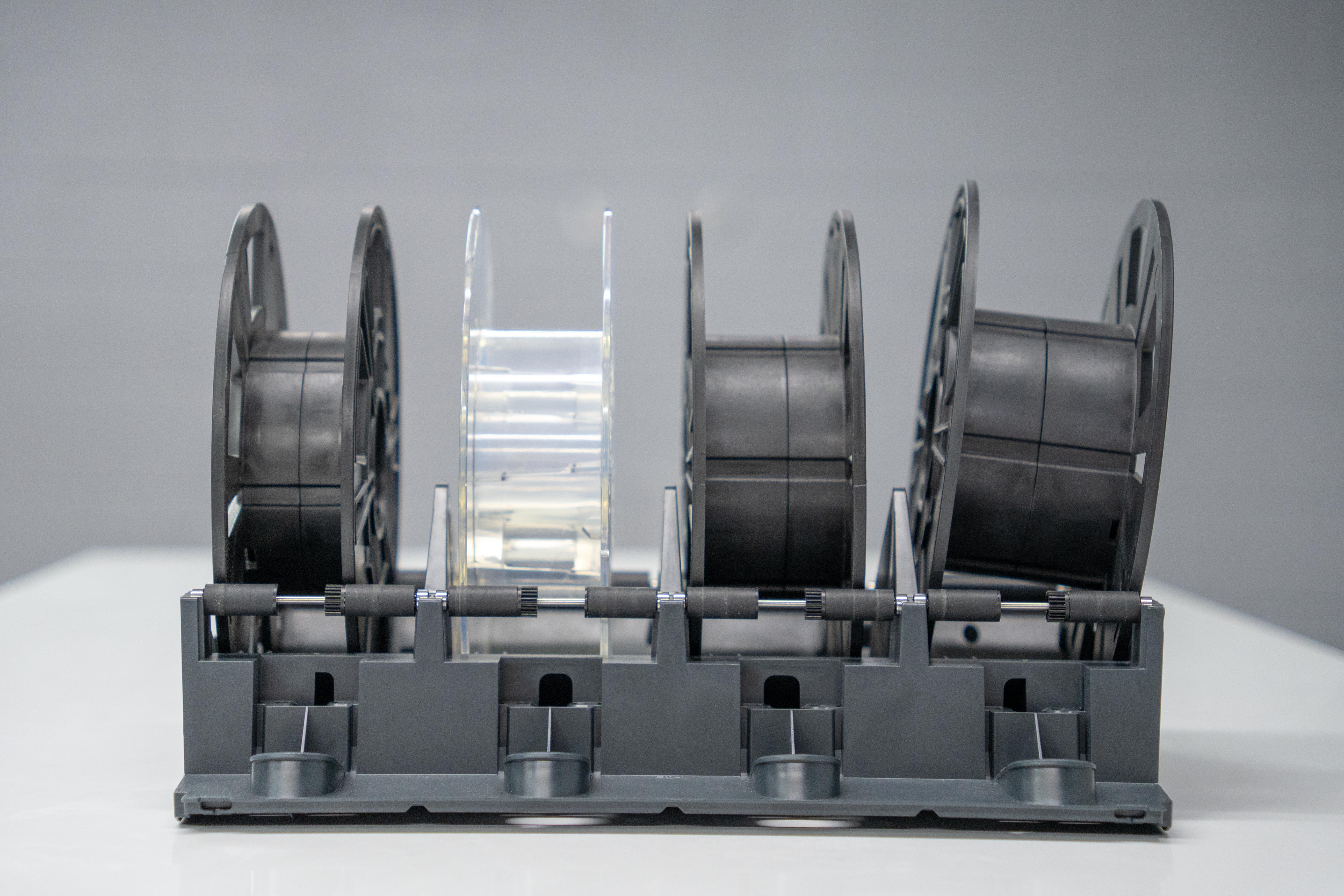

Material Management System Compatibility Explained
One of the most common questions AMS users ask is whether their favorite filaments will actually fit. To make this easier, we have gathered the key information you need to determine if your 3DXTECH filament is compatible with the material management system of your choice. The biggest factor to consider is reel size, since every system has requirements for diameter and width.
Fortunately, many of our most popular engineering-grade filaments, including Obsidian V2 and HTN-CF, are available on 750g reels. These fit within AMS specifications and allow users to take advantage of the phenomenal print quality and strength that this filament and Bambu Lab printer combination can deliver. Please note that while 500g reels fall outside of the recommended specifications, we have seen firsthand success with them in the original Bambu AMS, although results may vary. At the moment, our 1kg reels do not easily fit into AMS-style systems. Aftermarket modifications that allow larger reels to fit in the Bambu AMS do exist within the community, but pursuing this is entirely at your own risk and may void any warranties.
If you are interested in more details about our reel designs, including how to calculate the filament that remains on a spool, take a look at our empty reels infographic. It provides a breakdown of dimensions, weights, and other useful information to help you get the most out of your 3DXTECH filaments.
Dimensions
Popular Systems
-
Creality CFS: Diameter 197–202 mm | Width 42–68 mm
-
Bambu AMS: Diameter 197–202 mm | Width 50–68 mm
-
Bambu AMS 2 Pro: Diameter 197–202 mm | Width 50–68 mm
-
Anycubic ACE Pro, Kobra 3 Series: Diameter 195–200 mm | Width 60–68 mm
-
Anycubic ACE Pro, Kobra S1: Diameter 195–200 mm | Width 60–68 mm
3DXTECH Reels
-
750g: ~198 mm x 55 mm
-
500g: ~198 mm x 37 mm
-
Clear 750g: ~196 mm x 52 mm
-
1kg: ~198mm x 72mm
