PA6-CF vs. PA12-CF: Choosing the Right Carbon Fiber Nylon for Structural Applications

You already know you want carbon fiber reinforced nylon. The question is which one.

PA6-CF and PA12-CF are both carbon fiber filament options that are stiff and far stronger than unfilled filament. They also have different moisture characteristics, print requirements, and failure modes in service. Picking the wrong one for your application is not always noticeable right away. It appears three months later, when a jig warps, a clip cracks, or parts start going out of spec.

This article breaks down the differences between these two materials and tells you which one to reach for based on what you are building.

The Base Polymer Defines the Performance Envelope

Both PA6 and PA12 are polyamides, the polymer family behind every engineering-grade nylon filament on the market. They share a family resemblance in processing temperature and general printability; beyond that, the similarity ends.

PA6 (Nylon 6): The Stiffer, Thirstier Polymer

PA6 has a shorter carbon chain, which delivers:

• Higher crystallinity

• Higher stiffness in dry conditions

• Solid tensile strength at room temperature

The trade-off is hygroscopic behavior. PA6 can absorb 3 to 9 percent of its weight in moisture, depending on the environment. Absorbed moisture acts as a plasticizer, softening the material and causing dimensional change. In a controlled indoor environment, that is manageable. On a humid shop floor or in an outdoor setting, it becomes a real problem.

PA12 (Nylon 12): The Stable, Chemical-Resistant Polymer

PA12 has a longer carbon chain, which produces:

• A more flexible backbone

• Very low moisture absorption (typically under 1 percent)

• Better chemical resistance

• Excellent dimensional stability across varying humidity levels

• Lower warping during printing, particularly on large or flat parts

The mechanical properties in dry conditions are slightly lower than those of PA6. In wet or variable conditions, PA12 often outperforms it because moisture does not have the same effect.

How Carbon Fiber Reinforcement Changes the Picture

Adding carbon fiber to either nylon filament dramatically increases stiffness and reduces creep, which is true of any CF composite.

What carbon fiber does not change is the base polymer's relationship with moisture or chemicals.

PA6-CF is stiffer than unfilled PA6, and the carbon fiber reduces moisture-induced dimensional change relative to the neat resin. But the hygroscopic character of the PA6 backbone remains. Parts exposed to humidity will still pick up moisture, and their mechanical properties will shift accordingly.

PA12-CF gives you CF-level stiffness without that trade-off. The carbon fiber reinforcement closes the stiffness gap between the two grades more than most people expect, while PA12's inherent moisture resistance and chemical compatibility remain intact.

Quick Rule of Thumb

• Indoor, moisture-free environment: PA6-CF wins on maximum stiffness

• Outdoor, chemically exposed, or variable humidity: PA12-CF holds up better over time

PA6-CF vs. PA12-CF: Material Comparison



Verify stiffness, toughness, and heat values against 3DXTECH Technical Data Sheets before publishing. Values above reflect industry-standard benchmarks for these material classes.

Print Settings Side by Side

Both materials run at similar temperatures, so they can generally be processed on the same printer setup. A few differences are worth knowing before you swap spools.

Layer Height

Obsidian Nylon 6+CF V2 can be printed at 0.10mm, which matters for parts requiring fine surface detail or tight dimensional tolerances. PA12-CF has a minimum layer height of 0.25mm due to the material's flow characteristics. If your application needs precise features at fine layer heights, Obsidian Nylon 6+CF V2 is the better fit.

Nozzle Requirements

• PA6-CF: Hardened steel nozzle required. Carbon fiber is abrasive, and standard brass nozzles wear out quickly.

• PA12-CF: 0.4mm diameter minimum required.

• If your nozzle meets both specs, you can run both materials on the same setup.

Enclosure

Both materials benefit from a heated build chamber. Without enclosure, warping and delamination are significant risks on any part with a substantial cross-section. PA12-CF is typically more forgiving here. Its lower warping tendency means smaller parts can sometimes be printed reliably without a fully enclosed chamber, though enclosed printing remains the recommended setup for any production-quality output.

Drying Requirements: Not Optional with Nylon Filament

Every nylon filament absorbs atmospheric moisture. For PA6-CF, this is a greater concern than for PA12-CF due to the base polymer's higher moisture absorption rate. Even a few hours of exposure to humid air can degrade print quality measurably.

• PA6-CF (Obsidian CF V2): 80°C (176°F) for 6 hours minimum before printing

• PA6-CF (CarbonX Nylon 6+CF): 90°C (194°F) for 4 hours minimum before printing

• PA12-CF (CarbonX Nylon 12+CF): 90°C (194°F) for 4 hours minimum before printing

Signs Your Filament Is Wet

Wet nylon filament produces parts with visible defects and reduced mechanical strength. Watch for the signs below:

• Popping or crackling sounds during extrusion

• Stringing between features

• A rough or foamy surface finish

• Poor layer adhesion on inspection

If you see these conditions, dry the filament before continuing.

Storage Best Practices

A dedicated filament dryer or temperature-accurate food dehydrator works better than a standard kitchen oven for drying filament. Once dry, keep the spool in a sealed container with fresh desiccant between print sessions. It is especially important for PA6-CF.

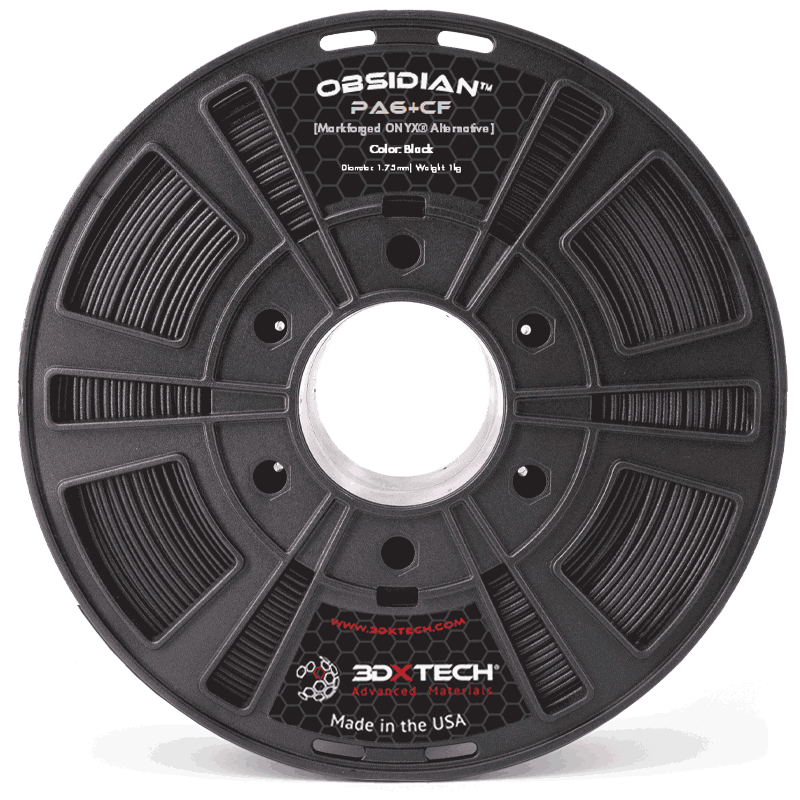

Obsidian CF V2: 3DXTECH's PA6-CF for Open and Markforged Systems

3DXTECH's OBSIDIAN Nylon 6+CF V2 was reengineered from the ground up based on real-world feedback from the printing community.

When the original Obsidian CF did not meet expectations on Markforged hardware, the team revisited the formulation and rebuilt it. The v2 formulation has since been validated on Markforged printers and a wide range of open-source systems.

The result is a PA6-CF that functions as a cost-effective alternative to Markforged's Onyx. For teams printing on Markforged hardware that want to reduce material costs without compromising structural performance, Obsidian CF V2 is the carbon fiber filament to start with.

Best Applications for Obsidian CF V2 (PA6-CF)

• Structural automotive parts and under-hood brackets where heat resistance matters

• Robotic end-of-arm tooling and structural components requiring maximum rigidity

• Functional prototypes that must resist deformation under load

• Indoor production tooling and jigs in temperature-controlled environments

• Fine-detail parts requiring layer heights below 0.15mm

Obsidian CF V2 print specifications:

• Extruder: 265°C–285°C (509°F–546.8°F)

• Bed: 90°C–110°C (194°F–230°F)

• Heated chamber: Recommended

• Nozzle: Hardened steel required

• Layer height: 0.10mm or higher

• Drying: 80°C (176°F) for 6 hours

CarbonX Nylon 12+CF: 3DXTECH's PA12-CF for Demanding Environments

CarbonX Nylon 12+CF is the PA12-CF carbon fiber filament in 3DXTECH's CarbonX line, made using high-modulus carbon fiber and a specialty PA12 selected for printability, thermal performance, and chemical resistance. It is widely used in aerospace, automotive, and industrial manufacturing for tools, fixtures, and jigs that must hold their dimensions in variable environments.

Best Applications for CarbonX Nylon 12+CF (PA12-CF)

• Aerospace jigs and fixtures requiring tight dimensional tolerances across humidity changes

• Automotive assembly tooling exposed to oils, fuels, and solvents

• Outdoor enclosures, mounts, and brackets that face UV and weather exposure

• Precision jigs and gauges where part-to-part consistency is critical

• Snap-fit components and flexible clips that benefit from PA12's tougher backbone

CarbonX Nylon 12+CF print specifications:

• Extruder: 509°F–546.8°F (265°C–285°C)

• Bed: 194°F–230°F (90°C–110°C)

• Heated chamber: Recommended

• Nozzle: 0.4mm diameter minimum

• Layer height: 0.25mm or higher

• Drying: 194°F (90°C) for 4 hours

The combination of very low moisture absorption and excellent chemical resistance makes CarbonX Nylon 12+CF a standout choice for parts exposed to oils, fuels, solvents, or outdoor conditions. Low shrinkage during printing also makes it well suited to applications where part-to-part dimensional consistency matters across a production run.

Decision Matrix: Which Material Is Right for Your Application?

If the table above leaves you uncertain, ask one question: Where does this part spend most of its life? A controlled indoor environment with no chemical exposure points to PA6-CF. Anything involving humidity, outdoor exposure, or chemical contact indicates PA12-CF.

How Does Obsidian CF V2 Compare to Markforged Onyx?

Both are PA6-CF materials. Onyx is Markforged's proprietary filled nylon, designed to run on its closed hardware ecosystem. Obsidian CF V2 is formulated to match Onyx's mechanical performance while working across Markforged and open-source printers.

For a complete breakdown, including side-by-side mechanical property data and print quality comparisons, see the complete Obsidian CF V2 vs. Markforged Onyx comparison here.

Frequently Asked Questions

Can PA6-CF and PA12-CF be printed on the same printer?

In most cases, yes. Both carbon fiber filament grades run at similar temperatures. Before switching, verify your nozzle setup. PA6-CF requires a hardened steel nozzle. PA12-CF needs a minimum diameter of 0.4mm. If your nozzle meets both specs, you can use the same hardware without modification.

Which material has higher stiffness: PA6-CF or PA12-CF?

PA6-CF generally has a higher flexural modulus in dry conditions, but the gap narrows considerably in real-world use. PA6 absorbs moisture, and its stiffness drops in humid environments. PA12-CF maintains its stiffness regardless of ambient humidity. In applications where moisture exposure is likely, PA12-CF can be the stiffer material in practice even if its dry-state numbers are slightly lower.

Why does PA6-CF require a hardened steel nozzle specifically?

Carbon fiber is highly abrasive. Standard brass nozzles wear rapidly when printing any carbon fiber filament. A hardened steel nozzle, or an equivalent wear-resistant nozzle, is needed to maintain consistent extrusion diameter over time. Without it, print quality deteriorates progressively, and you will need to replace the nozzle far sooner than expected.

Can I use PA12-CF as an Onyx replacement on a Markforged printer?

No. Obsidian CF V2 (a PA6-CF) is the material formulated and validated for that specific use case. PA12-CF is a different material category with diverse processing characteristics. It is optimized for moisture resistance, chemical exposure, and dimensional stability rather than Onyx compatibility.

Which material handles high heat better: PA6-CF or PA12-CF?

PA6-CF has a higher heat deflection temperature, making it the better choice for under-the-hood automotive components, high-temperature jigs, or any part subjected to sustained heat. PA12-CF is more limited on the heat resistance front, but offers stronger performance in chemical and outdoor environments where PA6-CF falls short.

The Bottom Line

The difference between PA6-CF and PA12-CF comes down to where your parts live and what they need to do. For maximum stiffness in a controlled environment, PA6-CF delivers. For parts exposed to humidity or chemicals, or that require consistent dimensions across production runs, PA12-CF is the better choice.

Both grades are part of 3DXTECH's CarbonX carbon fiber filament line, manufactured in Grand Rapids, Michigan, under ISO 9001:2015 certification. The result is consistent specifications, full traceability, and the same quality controls. Print with confidence on the material your application requires.
